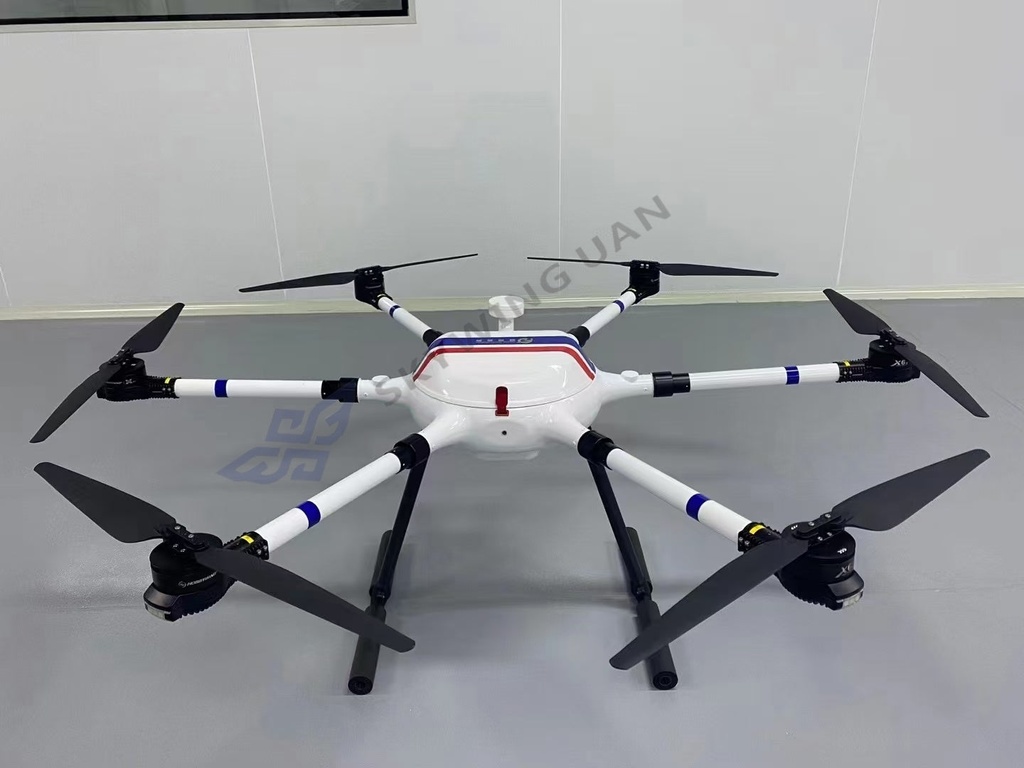

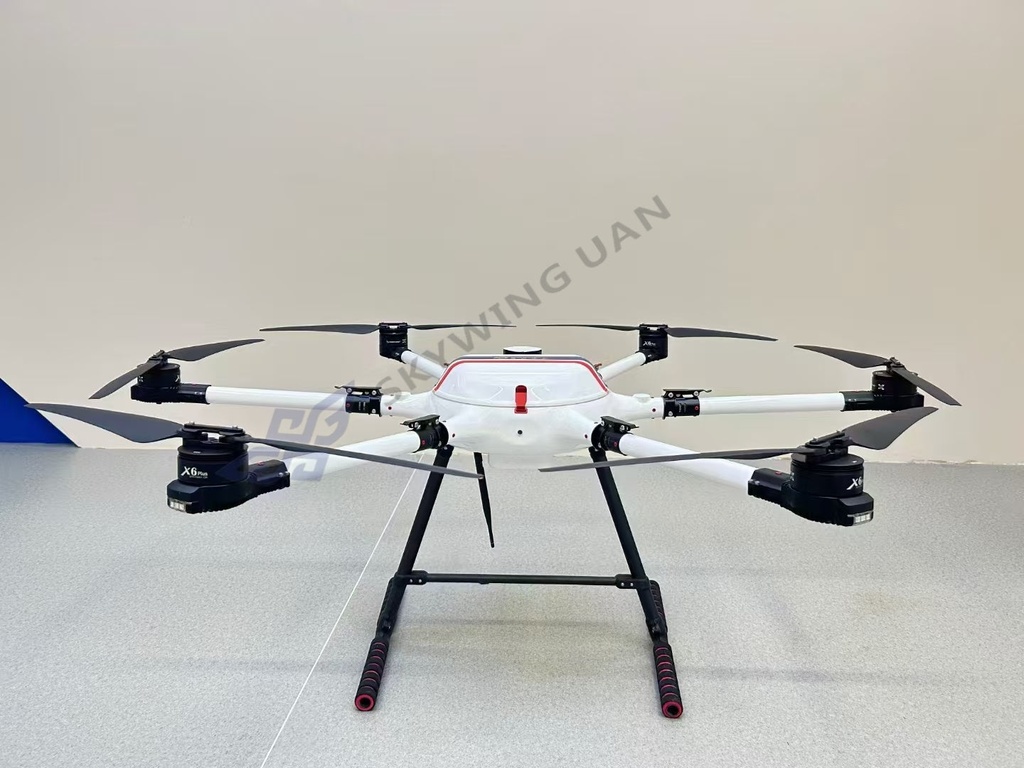

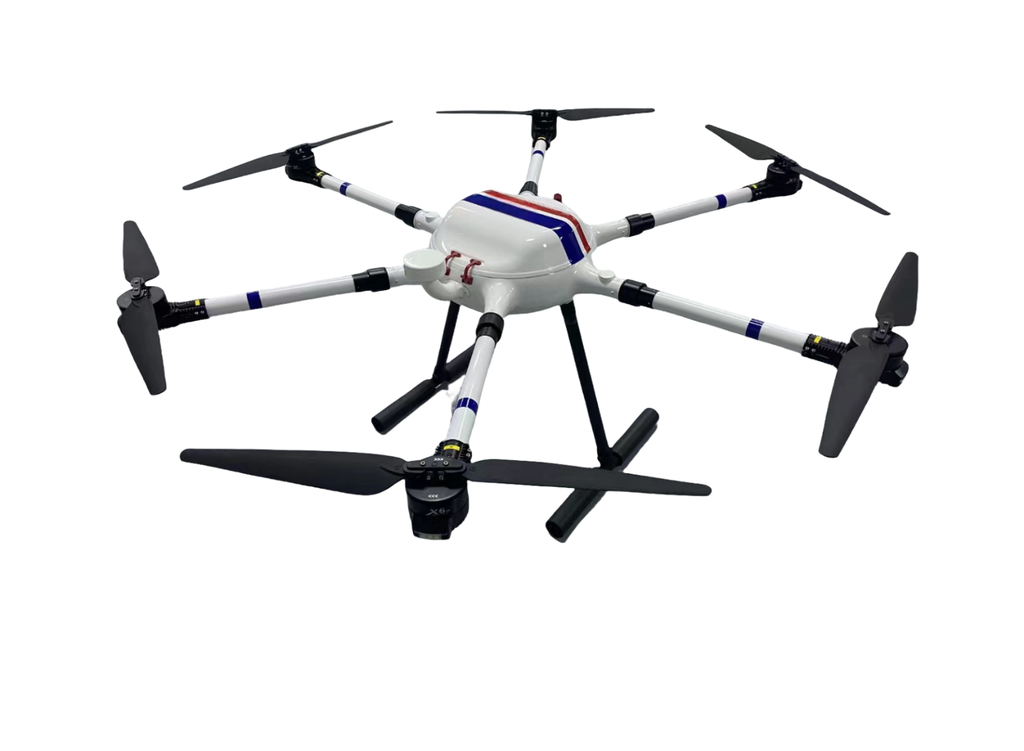

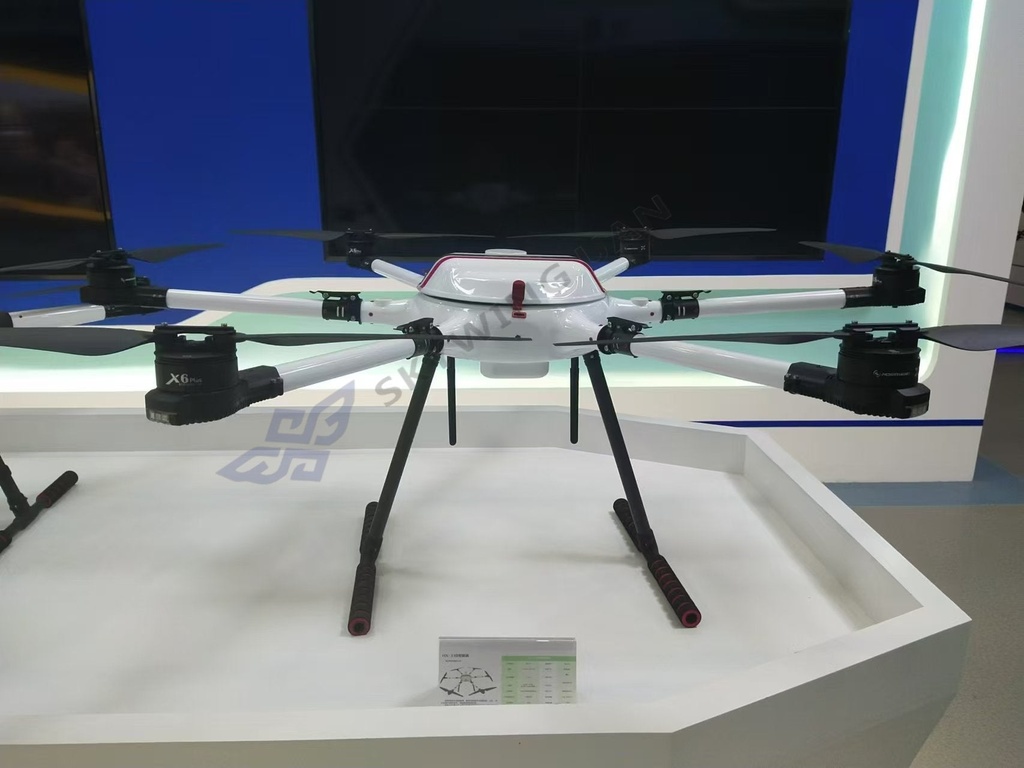

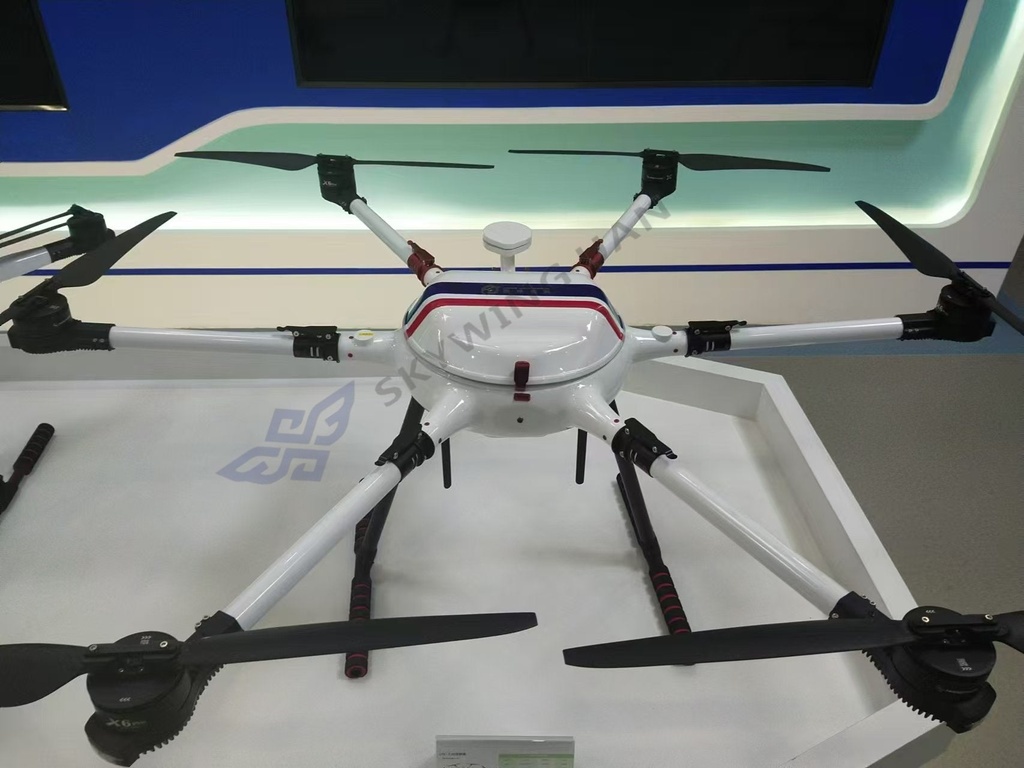

Carbon fiber unibody molding multi-rotor drone frame HX330
Carbon fiber unibody molding multi-rotor drone frame HX330
Multi-rotor HX330 chassis is carbon fiber unibody molding, the overall quality of light, high strength, high toughness, high temperature resistance, good rainproof, high flight stability! Performance Parameters Fuselage Material Toray 3K Carbon Fiber Manufacturing Process High temperature and high pressure molding Thickness Regular 0.6mm Weight of casing 1.75KG Weight of casing + power unit 5.65KG Equivalent Wheelbase 1290mm Number of rotors 6pcs Unfolded Size 1390mm*1210mm*550mm Folded Size 600mm*500mm*550mm Battery compartment size 250mm*180mm*150mm Recommended Load 3-5KG Unladen Endurance ＞ 75min Load capacity 5KG ＞ 60min Whole machine without loaded weight (Ultra Air 6s 32000*2 pieces) 10.5KG Control distance 30KM (handheld ground station control) Optional 4G/5G satellite communication
Procurement note: Final configuration, selected variant, payload compatibility, export/compliance requirements, warranty, lead time, and packing details should be confirmed before purchase.
Request a Quote Browse Catalog
Multi-rotor HX330 chassis is carbon fiber unibody molding, the overall quality of light, high strength, high toughness, high temperature resistance, good rainproof, high flight stability!
Performance Parameters
|
Fuselage Material |
Toray 3K Carbon Fiber |
|
Manufacturing Process |
High temperature and high pressure molding |
|
Thickness |
Regular 0.6mm |
|
Weight of casing |
1.75KG |
|
Weight of casing + power unit |
5.65KG |
|
Equivalent Wheelbase |
1290mm |
|
Number of rotors |
6pcs |
|
Unfolded Size |
1390mm*1210mm*550mm |
|
Folded Size |
600mm*500mm*550mm |
|
Battery compartment size |
250mm*180mm*150mm |
|
Recommended Load |
3-5KG |
|
Unladen Endurance |
＞75min |
|
Load capacity 5KG |
＞60min |
|
Whole machine without loaded weight (Ultra Air 6s 32000*2 pieces) |
10.5KG |
|
Control distance |
30KM (handheld ground station control) |
|
Optional 4G/5G satellite communication unlimited distance |
|
|
Adaptive mounting |
Camera, throwing equipment, shouting device, radar, descender, etc. |
|
Motor |
Goodwin X6 power set |
|
Adaptive paddle |
22-24 inch |
|
Lifting and lowering mode |
Vertical take-off and landing |
|
Working Temperature |
-20℃~60℃ |
|
Flying Speed |
15 meters/second |
|
Climbing speed |
5m/s (adjustable according to flight control) |
|
Wind Rating |
Class 6 wind |
|
Rainproof grade |
Medium rain |
|
Whether rotor wheelbase / tripod height can be customized |
Yes |
|
Powertrain Replacement |
Yes |
|
Minimum thrust/weight ratio to ensure safety |
1.3 |
|
High altitude performance |
Passed the plateau test |
|
Practical lift |
>4000 meters |
|
Type of flight control support |
Multi-rotor control is available for all flight controllers. |
Suitable for mounting
About Purchase
You are free to choose buy the following drone components according to your needs:
Optional 1: Drone Frame Type:HX330-F
Optional 2: Drone Frame with Propulsion System Type: HX330-P
Optional 3: Drone with Ready To Fly . Type: HX330-R
